New design: updated riser pics, finished pics

PostPosted: Fri Jul 25, 2014 9:36 pm
by arrowlauncherdj
Ill be posting pics tonight as I go here, but this is a gray AW and Osage handle with black and white glass accents. Here is the new limb design... It has a 3" PL past the fades and a tame TW. I didnt wanna go too rigid on the tips and the geometry is def harder hook than ur average curve but not as tight as some full statics.

Pad angle is 16* on a 15" riser. Stack is .230 using aboo taper and brown stripe parallel with a maple parallel, and .040 glass going for 50-56 lb. if it turns out, I'm gonna skin the limbs with those that Nolz sent me like 3 yr ago lol. Wish me luck guys!

Re: New design: static/semi static with 'normal' mounted lim

PostPosted: Fri Jul 25, 2014 10:17 pm
by Crooked Stic
Wellll hurry it up some :)

Re: New design: static/semi static with 'normal' mounted lim

PostPosted: Sat Jul 26, 2014 2:53 am
by arrowlauncherdj
https://m.facebook.com/photo.php?fbid=1 ... f=bookmark

https://m.facebook.com/photo.php?fbid=1 ... f=bookmark

Got rid of snapbucket bc my phone is bout out memory. So see if this works guys. Ill see if I can load them on laptop and in photobucket direct tomorrow. And should have limbs mounted by tomorrow afternoon.

Re: New design: static/semi static with 'normal' mounted lim

PostPosted: Sat Jul 26, 2014 11:13 am
by chackworth3
Nice! Looking forward to some more pics

Re: New design: static/semi static with 'normal' mounted lim

PostPosted: Sun Jul 27, 2014 12:50 pm
by Trux
I'll be waiting and watching this one. Should be interesting to see how those limb behave.

Re: New design: static/semi static with 'normal' mounted lim

PostPosted: Wed Jul 30, 2014 1:41 am
by arrowlauncherdj
Here's some new pics, got her strung last night. This was the most off I've ever had on tiller on any set of limbs ever. I rechecked pad angles, pulled the mic out and I just don't understand it. It was almost an inch too strong on one limb. Makes me think I got a piece of .05 glass bc all wood was identical. But I have only ordered .04 glass and that's the only thing I've ever used. Maybe that was slipped in my shipment and I didnt realize it. :(

Laptop is on the fritz so I'm still sharing FB til I can get it fixed, sorry guys. If u wanna see them and can't see FB ill be glad to email you.


https://m.facebook.com/photo.php?fbid=1 ... &source=48

https://m.facebook.com/photo.php?fbid=1 ... &source=48

https://m.facebook.com/photo.php?fbid=1 ... &source=48

Re: New design: strung pics

PostPosted: Wed Jul 30, 2014 1:01 pm
by arrowlauncherdj
Here guys, got photobucket up working:






Re: New design: strung pics

PostPosted: Wed Jul 30, 2014 1:21 pm
by chackworth3
Looks good! I like the profile

Re: New design: updated riser pics

PostPosted: Thu Jul 31, 2014 11:05 am
by arrowlauncherdj

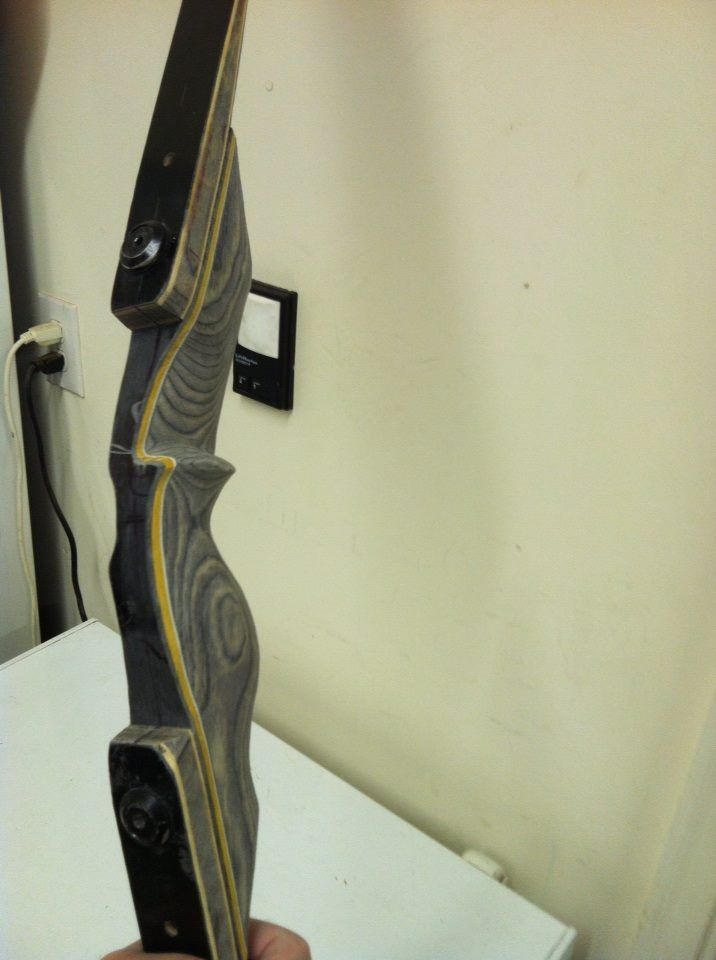

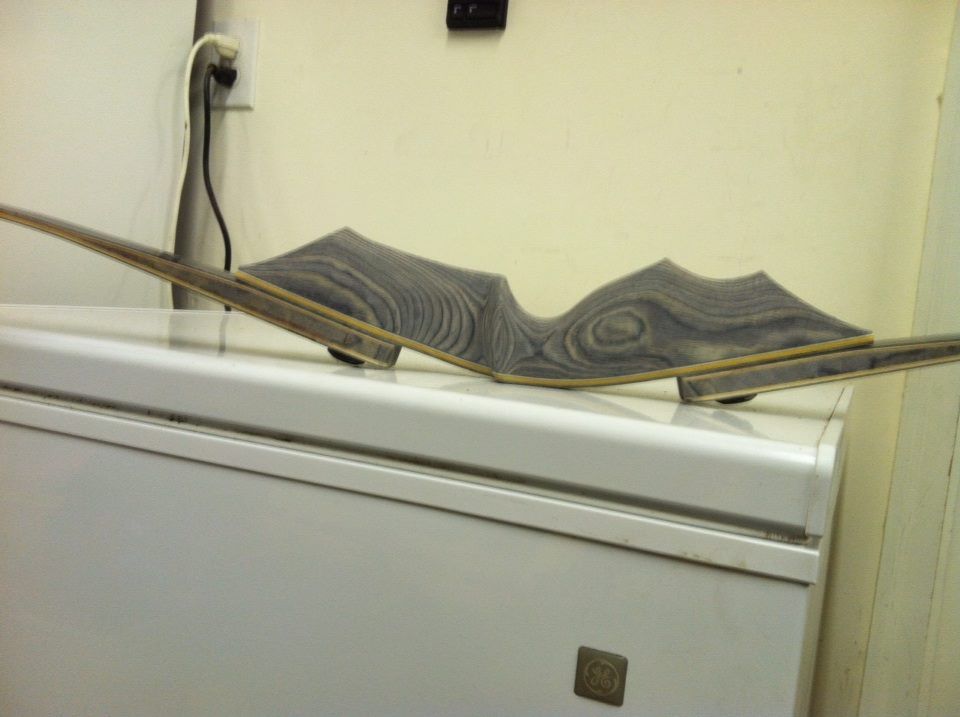

New riser design:

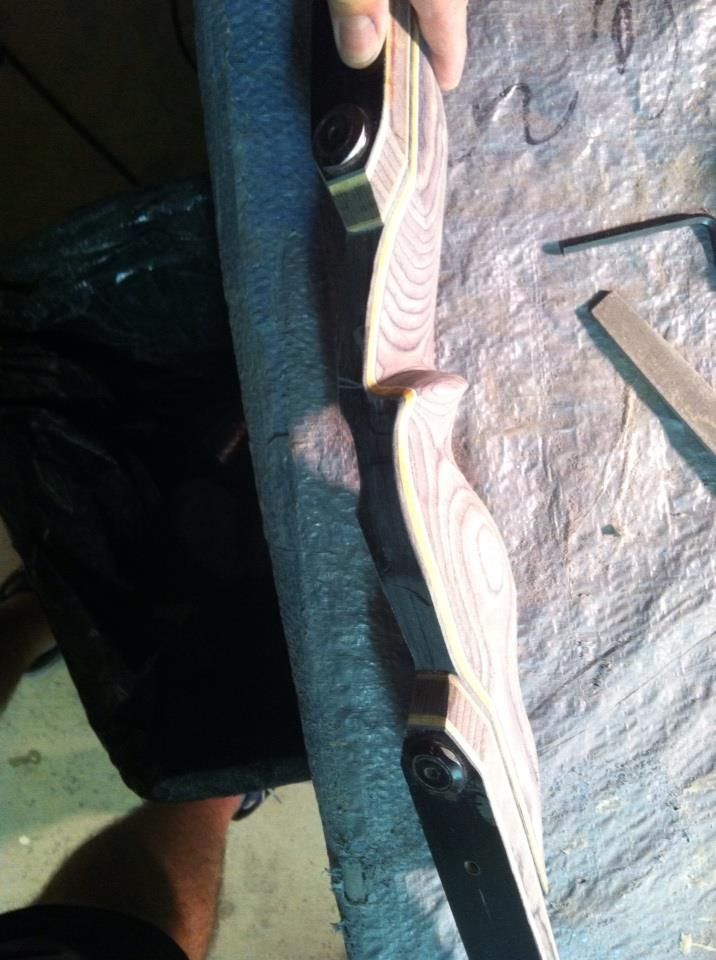

bad pic but you can see how Im tapering the limb butts into the handle


Re: New design: updated riser pics, photobucket working

PostPosted: Thu Jul 31, 2014 8:28 pm
by jeffhalfrack
man 'o'man! I thought your rear mounted limb bows were sweet but this take it to a new level nice JeffW
