Traditional Crossbow - BP Hybrid Tiller

Postby teagus » Sun Jan 09, 2011 9:48 am

DISCLAIMER: I am not responsible for any marital problems resulting from the purchasing of MORE TOOLS! :twisted:

The plan: Add a Ben Pearson style dead center prod to a hybrid Alchem style tiller.(Stock is for rifles, Tiller is for Trad CB)


As the BP prod has a longer power stroke, the nose (front) is longer.


I am so confident this is going to work I am doing a batch of six.

The three on the left are spoken for:
1. Purpleheart/Yellowheart center board (Bill)
2. Red Oak/Bubinga centerboard (Mark)
3.Br. Rosewood/Ash centerboard (Me)


Yo, Trux. Pick from the next three:

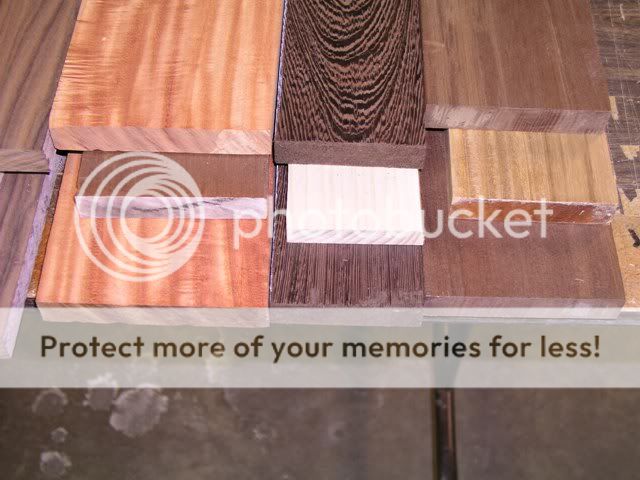

3. Santos Mahogany/Peruvian centerboard
4. Wenge/Ash centerboard
5. peruvian Walnut,Teak centerboard

User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP Hybrid Tiller

Postby Trux » Sun Jan 09, 2011 5:31 pm

I do like the looks of that wenge! I'm excited to see what you come up with.
Trux

Posts: 407
Joined: Mon Nov 03, 2008 9:44 pm


Re: Traditional Crossbow - BP Hybrid Tiller

Postby tattman2 » Sun Jan 09, 2011 5:46 pm

I agree with Trux,that wenge wood is pretty cool.I'm going to have to get some of that stuff.
Never underestimate the the power of Bowyers in large groups!!!
User avatar
tattman2

Posts: 668
Joined: Wed Nov 18, 2009 12:05 pm
Location: Phelps,NY


Re: Traditional Crossbow - BP Hybrid Tiller

Postby BK in TEXAS » Sun Jan 09, 2011 6:09 pm

Wenge looks incredible when finished. It is however a bitch to finish with those crater sized pores...so much so I rarely use it anymore even though it is beautiful !!!
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Traditional Crossbow - BP Hybrid Tiller

Postby teagus » Mon Jan 10, 2011 5:04 am

The tiller does not have the stresses of bows. The prod is serious business. The tiller is a blank canvas to use all that other stuff. I just have to look at the wenge and splinters appear in my hand.
User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP Hybrid Tiller

Postby teagus » Sun Jan 23, 2011 9:49 am

A fresh load of Paduak came in . I hopped on the best board in the lot. Four more Paduak/Peruvian Walnut/Paduak. The last one I made with this combination I had Keith powder-coat the hardware bronze. This takes the first batch up to ten.

User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP Hybrid Tiller

Postby teagus » Mon Jan 24, 2011 11:53 am

Next part overview:

Three boards. Center board 1/2" thick. Right side and left side boards 3/4" thick.


Drill holes for nut axle, trigger axle and nut pocket.


Cut the center board.Drill forward center board for quick reset pin, hair trigger set and trigger return spring. Also rout bolt groove on top (table).



User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP Hybrid Tiller

Postby BK in TEXAS » Mon Jan 24, 2011 12:12 pm

Great buildalong!!!

Where can I find these parts for the trigger & such? I think this should be on my to-do list. :)
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Traditional Crossbow - BP Hybrid Tiller

Postby teagus » Mon Jan 24, 2011 12:30 pm

It's coming BK. Trust me. Go get your lumber 36" long x 3 1/2" wide. BTW, I'm getting my 10" table saw out of storage next weekend to make the cut-out for the prod. Going to get that saw blade you posted in your build-a-long if I can find it. Nuts are made by Keith. I make my own triggers from 3/8" stock and oxy/acet set of B tanks/rosebud. Reminds me I have to get a bigger o2 tank. Axles from MSC.

All will be revealed grasshopper.
User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP Hybrid Tiller

Postby BK in TEXAS » Mon Jan 24, 2011 1:11 pm

teagus wrote:All will be revealed grasshopper.

:D :D
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin
