Traditional Crossbow - BP style prod

This forum is dedicated to the bowyer and his craft. This is the place to talk building techninques, design/theory, and anything about enhancing performance. Anything about bow building is welcome here. All build alongs will be housed in the sub-forum below.

Re: Traditional Crossbow - BP style prod

Postby teagus » Sat Apr 16, 2011 3:02 pm

It's time to do it.

Wrap form with shrinkwrap (stuff used for wrapping goods on pallets).


See the "1-10" scale? 4 (2 + 2) was perfect for 2 glass 3 lams and riser.


record the event.


glue-up. Sorry, no bow snot allowed on my good camera. Use your imagination.


This was not easy. Need to re-think a pin concept.


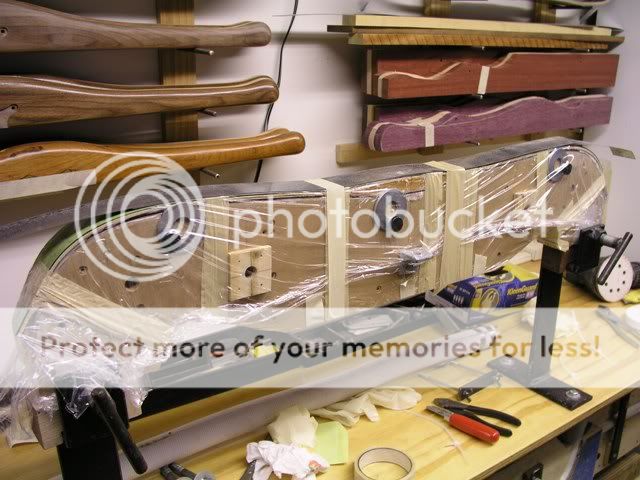

Hog-tied and ready for the hose. Second wrap and pressure strips. Did not have a one-piece 1 3/4" long enough so I used two for the td forms.

User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP style prod

Postby teagus » Sat Apr 16, 2011 3:06 pm

Slow air-up to 72lbs. Too much? Too little?


In the oven. Out at 8:30 EST.

User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP style prod

Postby teagus » Sat Apr 16, 2011 7:57 pm


User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP style prod

Postby Kirkll » Sat Apr 16, 2011 8:56 pm

Excellent teagus! :D :D :D i gotta get my hand on the plans for one of these things now... this is too cool!
http://www.bigfootbows.com/
kirk@bigfootbows.com


Only archers are fool enough to want to make a composite with natural materials and man made materials, and then bend it repeatedly...
User avatar
Kirkll

Posts: 6351
Joined: Sat Feb 09, 2008 5:22 pm
Location: Mulino, Oregon


Re: Traditional Crossbow - BP style prod

Postby teagus » Sat Jun 11, 2011 4:34 pm

I started taking a look at the Ben Pearson prod and decided I needed that laser. I covered it with masking tape and marked centers at the string grooves. With the laser running, I aligned the marks at each end with the beam. Next, I marked the beam at the center. I found out the center line is offset. My current prod is offset also. This is cool that Ben had the same ideas I did. The offset centerline has to do with minimizing string drag while keeping the weight up. I will now true up one side of my blank to be the top. I will come down 3/4" (1 3/4" wide) and laser a centerline. Next, I plan to make a template of one half of the back side of the Ben Pearson prod including string grooves and centerline marks. Next, transfer the pattern to my prod blank.


User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP style prod

Postby teagus » Sun Jun 12, 2011 9:36 am

Template time. Bottom of the cut-out meets the centerline. Just realized the cut-out is the prod sight window. Distance from centerline to string groove is 18 1/8".

User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP style prod

Postby teagus » Sun Jun 12, 2011 1:56 pm

Trim limb with that blade BK uses. 24t x 7 1/4. No more ruined band saw blades. Thanks Sir.


A little time on the large spindle sander. Looking bettter by the minute.


SIght window on the small spindle sander. Sander came from a retired bowyer by the name of Reedy who belonged to Chieftans Archery Club.


Need to rough in string grooves and drill the mounting hole through the riser.
User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP style prod

Postby teagus » Fri Jun 17, 2011 12:22 pm

I was reading "Arrow Trade" mag. May issue had a story on Bear Archery and showed this technique for holding recurve limbs. Worked great.


This operation should be performed before shaping the limbs. It's a perp thing.


First stress test. Prod passed. I was stressed.


21" long bolts. 11/32 125 gr. 3" fletch.


15 yards



2 shots - test over. Note penetration. Kirk, I just lost some weight recently. Hold off on that shirt. I might be looking at a XL.


User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP style prod

Postby teagus » Fri Jun 17, 2011 12:28 pm

Tip overlays, finish sanding limbs, then weigh power stroke on old bow scale. Just put in order for new digital scale. Should be here by Tuesday. Thinking of a fixture to hold the prod and weigh one limb at a time to balance. :D
User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.


Re: Traditional Crossbow - BP style prod

Postby teagus » Fri Jun 17, 2011 1:32 pm

Could not wait for digital scale. 10 3/4" power stroke. I think the string could be shorter - 10 1/2" ps. Do not know the original BP string length.



Next prod will have a .040 parallel. Increase .010".
User avatar
teagus

Posts: 221
Joined: Sat May 08, 2010 6:26 am
Location: Pittsburgh, Pa.
