Re: Anatomy of the LIF Hunting Riser

Postby Bobmeister » Mon Feb 27, 2012 10:18 am

Time to start setting the table saw up to cut the limb bed angle. This is critical to get the blade square with the sled.

Ready to rockImage

The operation was a success

Rounding over the back to the layout line.
Last edited by Bobmeister on Mon Jan 14, 2013 5:52 pm, edited 1 time in total.
User avatar
Bobmeister

Posts: 313
Joined: Mon Feb 18, 2008 9:53 pm
Location: Idaho


Re: Anatomy of the LIF Hunting Riser

Postby Jumper » Tue Feb 28, 2012 1:44 am

Sweet! I love a good build-a-long :D
With God, all things are possible.
User avatar
Jumper

Posts: 753
Joined: Fri Sep 26, 2008 1:06 pm
Location: North Pole, Alaska


Re: Anatomy of the LIF Hunting Riser

Postby bearauto11 » Tue Feb 28, 2012 8:49 am

This is awesome to watch!
Thanks!
User avatar
bearauto11

Posts: 1326
Joined: Wed Sep 29, 2010 10:09 am
Location: Sonora, California


Re: Anatomy of the LIF Hunting Riser

Postby Bobmeister » Fri Mar 02, 2012 11:28 am

Ok now it time to put a overlay on the back. .035" Maple and .125" thick Phenolic strip , You can see the clamping jig that will pull it all tight together. Using the wedge that were cut off the riser block glued to a piece off fiberglass. ( got this method from Kirk ;) )


All clamped up ready for the hot box.

Out of the hot box and cleaned off
User avatar
Bobmeister

Posts: 313
Joined: Mon Feb 18, 2008 9:53 pm
Location: Idaho


Re: Anatomy of the LIF Hunting Riser

Postby Bobmeister » Fri Mar 02, 2012 11:45 am

Next step is to set up the router table with a 3/4" bit for cutting the slot for the Donkey insert. After setting the table up I run a couple off scrap pieces thru the set up that are the same width as the riser. This will tell me if the slot is centered or if I need to adjust my guides

Before

After (one pass)

Centered Within .0015" side to side

Drilling and tapping for all of the hardware comes next
User avatar
Bobmeister

Posts: 313
Joined: Mon Feb 18, 2008 9:53 pm
Location: Idaho


Re: Anatomy of the LIF Hunting Riser

Postby Bobmeister » Fri Mar 02, 2012 12:11 pm

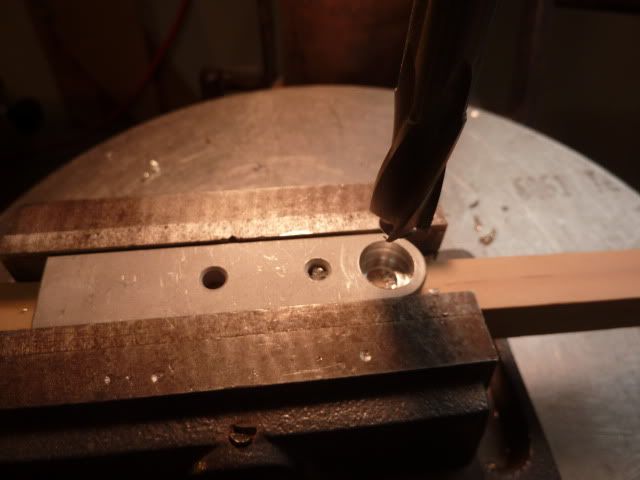

Need to counter bore the bottom side of the Donkey insert .5" diameter X .312" deep to allow the threaded limb bolt insert to be close to the surface. Doing this the limb bolt threads will start 1/16" down from the out side surface.

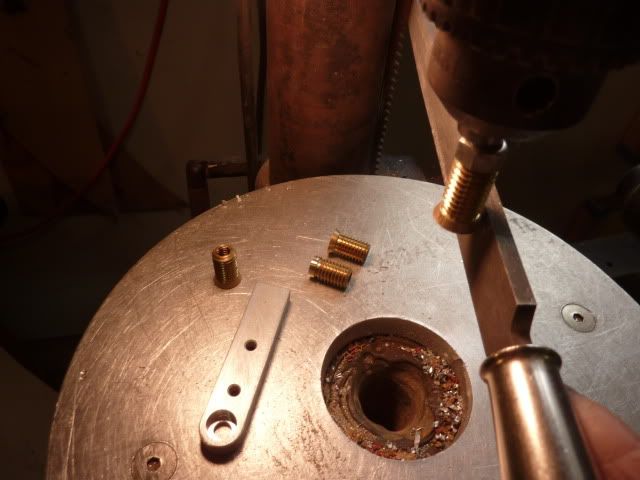

Filing off the bevel of the countersink to 1/2" round to fit into the counter bore hole

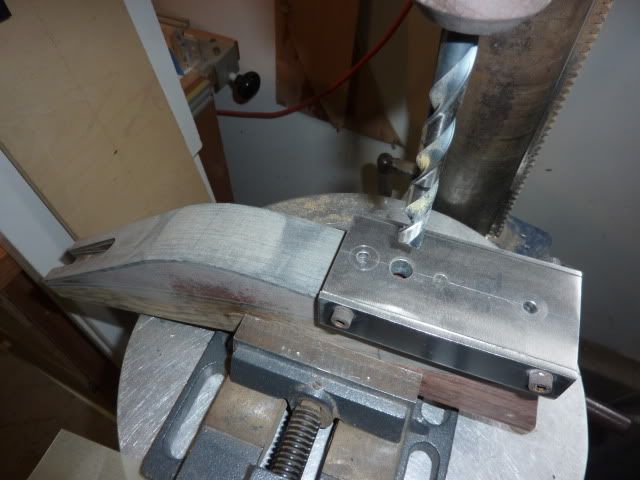

I use the donkey insert for a drill guide ( sure wish Jim would make up some steel guides for doing this)

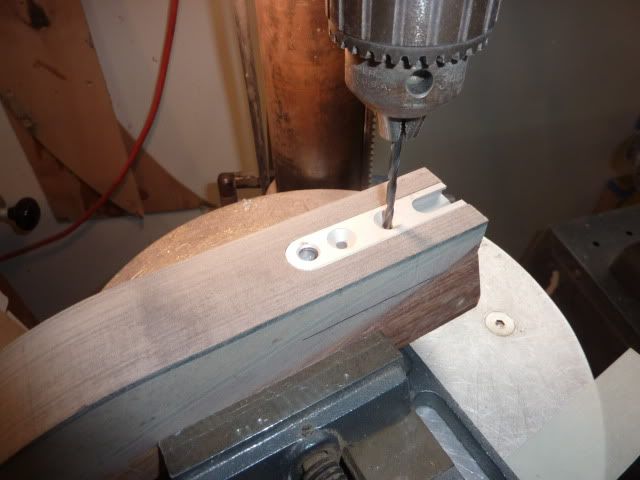

After I pilot drill the 5/16 hole then drill it out to 27/64 for the 1/2-13 insert treads

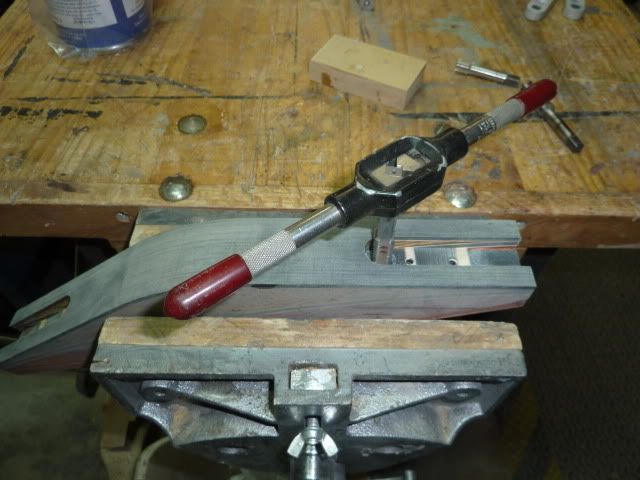

Tappout

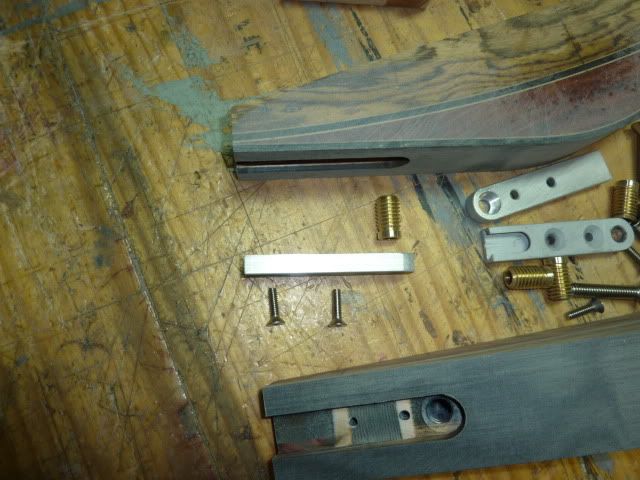

Order of assembly
User avatar
Bobmeister

Posts: 313
Joined: Mon Feb 18, 2008 9:53 pm
Location: Idaho


Re: Anatomy of the LIF Hunting Riser

Postby Jumper » Fri Mar 02, 2012 7:52 pm

This is so cool to watch!
With God, all things are possible.
User avatar
Jumper

Posts: 753
Joined: Fri Sep 26, 2008 1:06 pm
Location: North Pole, Alaska


Re: Anatomy of the LIF Hunting Riser

Postby 4nolz » Fri Mar 02, 2012 8:34 pm

do you "prebend" the thick phenolic back riser overlay? It seems like a piece that thick would want to lift.great buildalong!
there are 2 dates on your marker.Your life is the dash in between.
User avatar
4nolz

Posts: 3837
Joined: Wed Sep 26, 2007 9:09 pm


Re: Anatomy of the LIF Hunting Riser

Postby Bobmeister » Fri Mar 02, 2012 11:18 pm

4nolz wrote:do you "prebend" the thick phenolic back riser overlay? It seems like a piece that thick would want to lift.great buildalong!


Good eye there nolz, Yep I bend them a little bit past the radius that I want by clamping the phenolic strips to this jig and placing it in the oven at 220 degrees for 30 minuets. When they cool they hold shape and make it a lot easier to clamp together.


User avatar
Bobmeister

Posts: 313
Joined: Mon Feb 18, 2008 9:53 pm
Location: Idaho


Re: Anatomy of the LIF Hunting Riser

Postby Bobmeister » Mon Mar 05, 2012 2:57 pm

These are the last pieces in the glue up, all laid out in order.Image

Note the wedges that I tacked on the belly with some CA glue, they keep the clamping presser even. Also added stop block on the back to keep things lined up.

Clamped up ready to bake.
User avatar
Bobmeister

Posts: 313
Joined: Mon Feb 18, 2008 9:53 pm
Location: Idaho
