Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Mon Aug 02, 2010 4:44 am

Blade dedicated to cutting fiberglass. I don't cut any glass on the bandsaw.
Actually I don't do very much on the bandsaw....guess I'm a tablesaw guy :)

Just go slow & steady and it's not a big deal. You do not have to cut on the line,
just close enough to save yourself time on the sander.
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Mon Aug 02, 2010 5:04 am

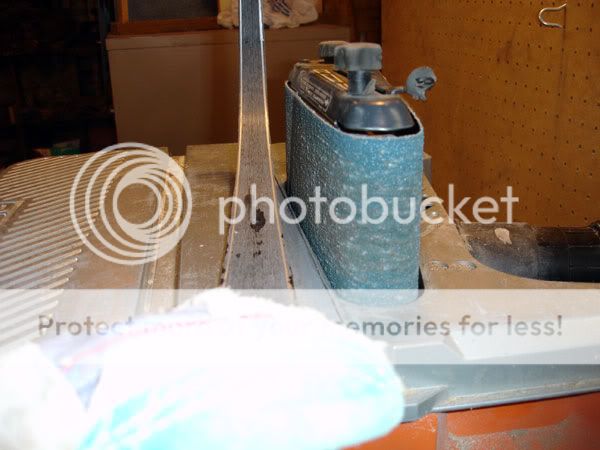

I still need 2 more tools....a drum sander and a big-boy edge sander.....someday :roll:

Until then I use the edge sander Ibex sent me a while back.....I get the feeling
this sander has seen a LOT of bows....

You'll notice that I sand down to the OUTSIDE edge of my line. That's because I'm a wuss.
See, I'm leaving myself an out....a safety valve. Once I get a string on it I'll check for twist
and have 1/16" on each side to adjust if need be. If it lines up good, then I'll just grind
down to the inside of the lines.....or leave it, depending on weight.

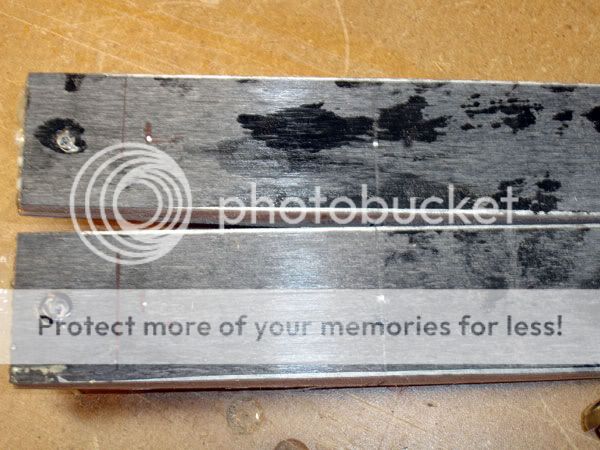

Marking for ILF hardware.
The black left line will be the limb butt.
The left silver dot is the center of the limb bolt slot.
Right pencil line is the rocker & silver dot is the center of the bushing.

It was getting kind of late so I decided to leave it until tomorrow and remeasure everything
before drilling. I really don't want to make a stupid mistake here.
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby benzy » Mon Aug 02, 2010 7:36 am

Awesome build along. Thanks for taking the time to post this.
User avatar
benzy

Posts: 148
Joined: Fri Jan 25, 2008 10:38 am
Location: Otsego, MI


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby Crooked Stic » Mon Aug 02, 2010 9:39 pm

Looking good Bobby. I am gonna have to try that table saw thing one day.
Prez of the Crooked Stic Gang
User avatar
Crooked Stic

Posts: 4140
Joined: Thu Jan 17, 2008 9:02 pm
Location: Princeton IN.


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Tue Aug 03, 2010 7:27 am

After remeasuring everything every which way but Friday, I drilled. Okay, I drilled 2 small pilot holes then hung a string on it again to make sure they were still lined up. We're good on both limbs.

Next was to take it to the drill press and make damn sure the limb was square to the bit. I used the cutoffs from when I made the wedges to keep the limb from rocking. Drill 3/8" holes.

Install bushings.
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Tue Aug 03, 2010 7:31 am

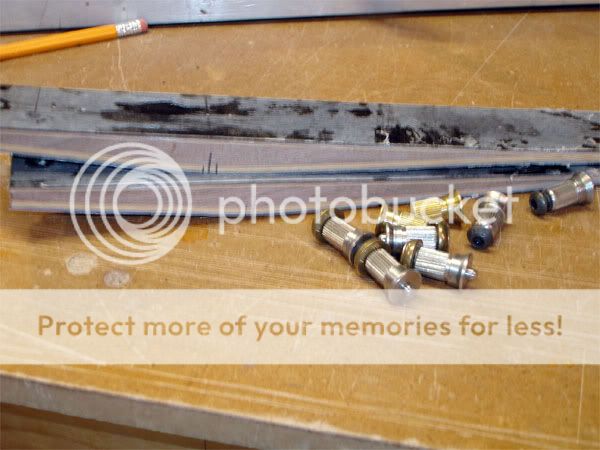

I wanted to see how everything was working so I slipped a Donkey Insert onto the bushing. feels about right.

Checking to see if the bolt hole lines up with the insert......sweet :)
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Tue Aug 03, 2010 7:36 am

I trimmed the butt down to the line I had previously marked, then went to the bandsaw and nicked out the little piece left behind the bolt hole.

need to smooth that out to 3/8" channel. I was warned not to have any slop in this hole so I used a file and checked the size frequently.

When the 3/8" drill bit slid in easily and just stayed there I called it good. A slight tap would knock the bit to the floor.

Nearly finished. Tomorrow I'll profile them down to 1 1/8" ILF width.
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby Ben » Tue Aug 03, 2010 7:53 am

You're timing of this Build-along is perfect :)
Doin a HELL of a good job too!!!!

Thanks brother,, i needed this-un :oops:
Everything is simple, people make it complicated
Ben

Posts: 243
Joined: Tue Feb 12, 2008 12:07 pm
Location: North Florida


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Tue Aug 03, 2010 12:19 pm

Thanks Ben! Let me know if you have any questions.

BK
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby Mann » Tue Aug 03, 2010 1:03 pm

Great build BK
I agree with Ben your timing is perfect.
Oh ya, are you SURE you never cut glass on the bandsaw? LOL
Thanks for the lesson, cant wait to see it finished.
Jim
Mann

Posts: 745
Joined: Tue Aug 25, 2009 5:55 am
Location: Indiana
