Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Sat Aug 14, 2010 9:22 pm

4nolz wrote:How do you know how much limb butt to trim off with the ILF wedges/rocker?


Mike, there is a CAD drawing here: viewtopic.php?f=49&t=6335

But basically, the finished ILF limb butt is 2.5" from the Rocker. On my form I plan on 1" of cutoff, extra, whatever you call it from the very back of my form. So I when I made the wedge I just trimmed the butt down to 3.5" (1" + 2.5") before glue-up.
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BullMtnArchery » Mon Aug 16, 2010 12:59 pm

Doing great. Loving this build. One of my winter projects will be to build a ILF for myself. Nice little trick with the dowels.
Brock
"Never mistake kindness for weakness"
"Character is the type of person you are when no one is around"
User avatar
BullMtnArchery

Posts: 829
Joined: Fri Feb 01, 2008 2:11 am
Location: Illinois (via SW Washington)


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Tue Aug 17, 2010 4:37 am

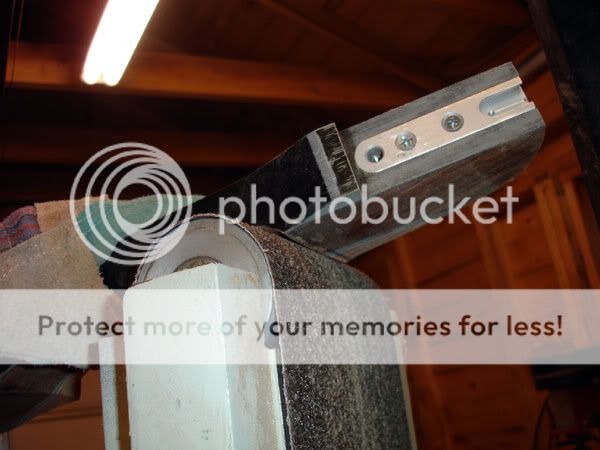

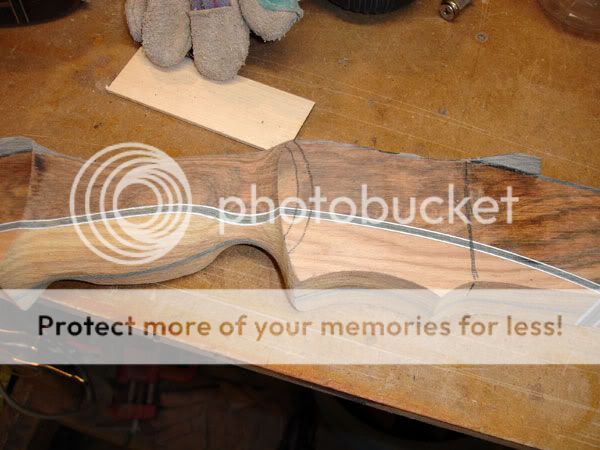

More riser work. I do the vast majority of riser shaping between a 6x48 sander and the rigid edge sander. So first I rough out some of the larger chunks on the bandsaw.

Load both sanders up with 24 grit Zirconium and get to it.
6x48 for bigger curves.

Rigid for narrower curves.
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Tue Aug 17, 2010 4:47 am

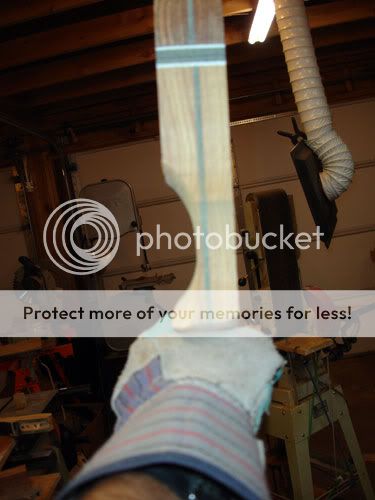

Once I have the throat of the grip pretty close I mark out the shelf/sight window.

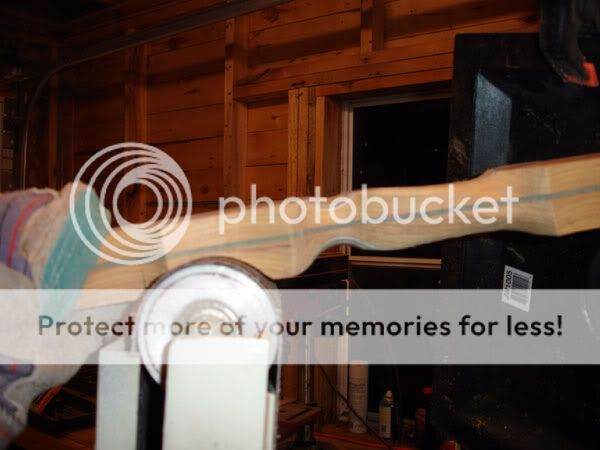

I use the I-Beam as my centerline reference and just grind her down on the 6x48.

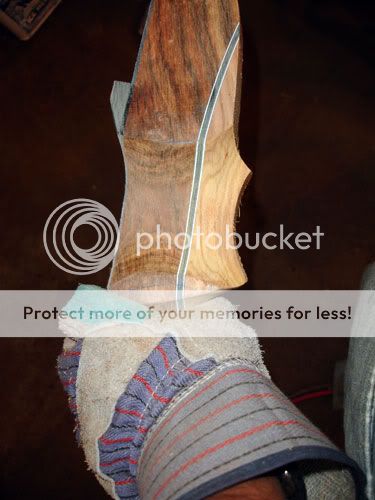

Flipped around doing the shelf side


Rock it back & forth a bit & this is what I'm left with after the 6x48.

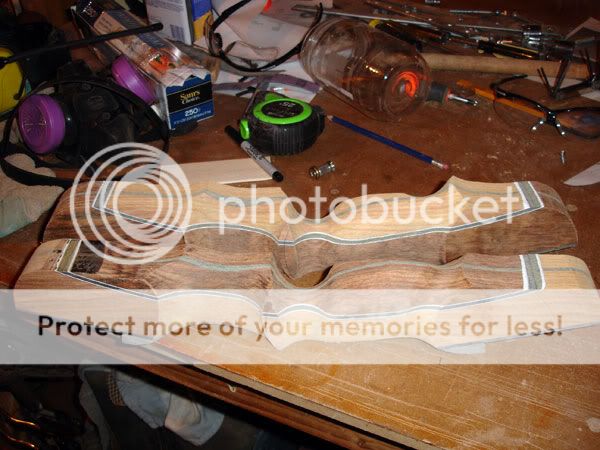

Here they are after taking them to the narrower Rigid & getting even closer to a finished shelf.
Tonight I'll finish out the shelf & get rid of all the 24 grit marks ;)
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby 4nolz » Tue Aug 17, 2010 6:21 am

intresting-you dont cut out the site window or shelf you grind it out? neat idea site windwos and shelves kick my butt.
there are 2 dates on your marker.Your life is the dash in between.
User avatar
4nolz

Posts: 3833
Joined: Wed Sep 26, 2007 9:09 pm


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Tue Aug 17, 2010 6:40 am

4nolz wrote:intresting-you dont cut out the site window or shelf you grind it out? neat idea site windwos and shelves kick my butt.

Ya they used to kick my butt too.
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby Kirkll » Tue Aug 17, 2010 7:18 am

yup.... zirconium rock paper sure beats the hell out of screwing up band saw blades too. :D :D

i've never tried the 24 rocks per inch stuff. :shock: :shock: but the 36 rock gets her done nicely.

great job Bobby! :D
http://www.bigfootbows.com/
kirk@bigfootbows.com


Only archers are fool enough to want to make a composite with natural materials and man made materials, and then bend it repeatedly...
User avatar
Kirkll

Posts: 6351
Joined: Sat Feb 09, 2008 5:22 pm
Location: Mulino, Oregon


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby angelstaff » Tue Aug 17, 2010 7:33 am

Bobby, that looks great, I can not wait to see it finished
Angel
User avatar
angelstaff

Posts: 409
Joined: Tue Mar 31, 2009 1:24 am
Location: valencia españa


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Tue Aug 17, 2010 11:07 am

Kirkll wrote: i've never tried the 24 rocks per inch stuff. :shock: :shock: but the 36 rock gets her done nicely.


It sure does remove wood in hurry! Like being in a snowstorm of dust shavings :D :D
Hooked on Phonics......Helping kids read gooder since 1970.


http://www.NorthlandGameCalls.com
User avatar
BK in TEXAS

Posts: 4929
Joined: Tue Apr 01, 2008 6:43 am
Location: Northwestern Wisconsin


Re: Bowswap ILF Buildalong - 4 4Nolz

Postby BK in TEXAS » Wed Aug 18, 2010 7:58 am

Wish I could have taken some action shots while finishing out the shelf, but the air die grinder makes a heck of a dusty mess :shock:
I just use 36 grit roloc discs and grind down where the belt sander couldn't reach.

Once I get more or less what I want the shelf/window/riser to look like I switch to a 50 grit orbital sander disc. 50 grit is aggressive enough to still do shaping while not taking out major gouges. I make sure the riser is completely shaped before finishing with the 50 grit discs.

All that's left is moving to 120 grit orbital, then 220 grit.
